Description
FEATURE
Input
- Input resolution: max 1920×1080@60Hz.
- Signal sources: 2×HDMI1.4, 1×DVI, 1×VGA, 1×CVBS.
- U-disk interface：1×USB.
Output
- Loading capacity: 2.6 million pixels.
- Maximum width is 3840 pixels or maximum height is 2000 pixels.
- 4 Gigabit Ethernet output ports.
- Supports Ethernet port redundancy
| Shenzhen Taiheng Photoelectric Co., Ltd |
Audio
- Input: 1×3.5mm.
- Output: 1×3.5mm，support HDMI and U-DISK audio outputs.
Function
- Supports switching, clipping and zooming.
- Supports screen offset.
- Supports screen adjustment: contrast, saturation, chroma, brightness compensation and sharpness adjustment.
- Supports convert Limit Range to Full Range input color space.
- Supports send and read back screen correction factor, advanced stitching.
- Supports HDCP1.4.
- Supports Precise Color Management.
- Supports Better Gray Level at Low Brightness, can effectively maintain the complete display of grey scale under low brightness.
- Supports a new generation pf color space, ultra-high definition Blu-ray BT
- 16 scene presets.
- Play back pictures and videos from U-disk.
- OSD for U-disk playback and screen adjustment (Remote controller optional).
- 30 bit Scaling Technology – LED Video Processor using a dual-core image processing engine, a single core can process 30 image scaling technology to achieve pixel output from 64 to 2560, while achieving 10 times the image to enlarge the output, i.e., the maximum screen more than 25,600.
- 34 GAMMA Curve – A rich pool of GAMMA curve, users can meet in a variety of light conditions and the use of color environments.
- Black edge cut/remove function: solves the black edge problem caused by terminal signals and performs arbitrary cutting for any signal source (still keeping full screen state).
- Support editing and saving multiple programs, and schedule playback time to achieve unattended playback;
- Support dual screen display, editing and playback do not affect each other;
- Support remote control, simple and fast;
- Support PPT with special effects playback
Control
- USB port for control.
- RS232 protocol control.
- Infrared remote control (optional).
HARDWARE INTRODUCTION

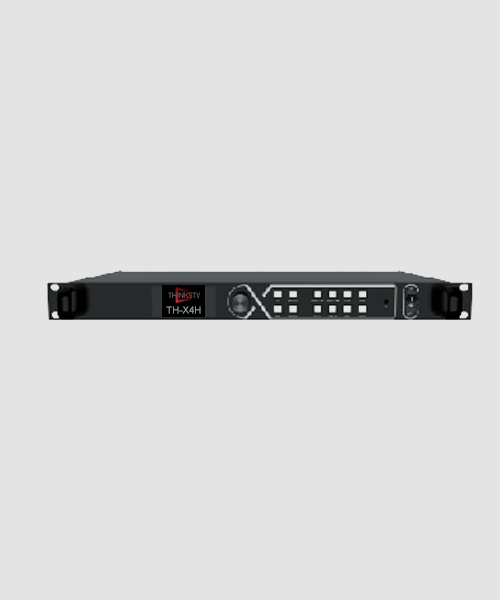

Front Panel
| No. | Item | Function | |
| 1 | LCD display | Display operation menu and system information. | |
| 2 | Knob | Press the knob to access the submenu or confirm.
Turn the knob to select menu items or adjust parameters. |
|
| 3 | Function button | OK: Enter.
Bright: Adjust brightness. ESC: Exit the current interface. Black: Black the screen. HDMI 1 / HDMI 2 / DVI 1 / VGA : – Switching to a signal source by clicking corresponding button. – In U-disk playback mode, these buttons serve respectively as play/pause, stop, previous and next. CVBS: Switch to CVBS. PART: Clip the picture. USB: Click the USB button to enter the U-disk playback mode. Click again to enter the console interface. LOCK: Lock the buttons on the front panel. |
|
| 4 | IR | IR receiver. | |
| 5 | Switch | Switch on/off. |
Later
| Power supply | |||
| 1 | Power Socket | AC100-240V~, 50 / 60Hz, Connect to AC power supply. | |
| Control | |||
| 2 | RS232 | RJ11 (6P6C) interface *, used to connect the central control. | |
| 3 | USB | USB2.0 Type B interface, connect to PC for configuration. | |
| Audio | |||
| 4 | AUDIO IN | Interface type: 3.5mm
Receive audio signals from computer or other equipment. |
|
AUDIO OUT |
Interface type: 3.5mm
Output audio signals to active speaker and other devices. (Support HDMI audio decoding and output) |
||
| Input | |||
| 5 | CVBS | PAL/NTSC video input | |
| 6 | U-DISK | USB flash drive interface.
USB flash drive format supported: NTFS, FAT32, FAT16. Image file formats: jpeg, jpg, png, bmp. Video codec: MPEG1/2, MPEG4, Sorenson H.263, H.263, H.264(AVC1), H.265(HEVC), RV30/40, Xvid. Audio codec: MPEG1/2 Layer I, MPEG1/2 Layer II, MPEG1/2 Layer III, AACLC, VORBIS, PCM, and FLAC. Video resolution: maximum 1920×1080@30Hz.
|
|
7 |
HDMI 1 | 1 x HDMI1.4 input interface 480i/p、576i/p、720p、1080i/p、Color depth support 8、10、12、14、16bit
Maximum resolution: 1920×1080@60Hz. Support EDID1.4. Support HDCP1.4. Support audio input.
|
|
| 8 | HDMI 2 | 1 x HDMI1.4 input interface 480i/p、576i/p、720p、1080i/p、Color depth support 8、10、12、14、16bit
Maximum resolution: 1920×1080@60Hz. Support EDID1.4. Support HDCP1.4. Support audio input. |
|
| 9 | DVI | Maximum resolution: 1920×1080@60Hz.
Support EDID1.4. Support HDCP1.4. |
|
| 10 | VGA | Maximum resolution: 1920×1080@60Hz.
|
|
|
Output |
|||
| 11 | PORT 1-4 | 4 Gigabit Ethernet ports.
One network port load capacity: 655360 pixels. Total load capacity is 2.6 million pixels, maximum width is 3840 pixels and maximum height is 2000 pixels. It is highly recommended that the cable (CAT5E) length should not exceed 100m. Support redundant backup. |
|
* RJ11 (6P6C) to DB9 connecting diagram. The cable is optional, please contact Thinkstv sales or FAE for the cable.
| Shenzhen Taiheng Photoelectric Co., Ltd |
* Remote controller is optional. Please contact Thinkstv sales or FAE for the remote controller.
| No. | Item | Function | |
| 1 | Sleep/Wake up |
Hibernate/wake up the device (one-button black screen switch) |
|
| 2 | Main menu | Open the OSD menu. | |
| 3 | Back | Exit the OSD menu or return to previous menu | |
| 4 | Volume + | Volume up | |
| 5 | U-disk playback | Access the U-disk playback control interface | |
| 6 | Volume – | Volume down | |
| 7 | Bright – | Decrease the screen brightness | |
| 8 | Bright + | Increase the screen brightness | |
| 9 | Confirm + directions | Confirm and navigation buttons | |
| 10 | Menu | Switch on/off the menu | |
| 11 | Input signal sources | Switch input signal sources |
Application scenarios
Signal Format：
| Input | Color space | Sampling | Color depth | Max Resolution | Frame rate | |
| DVI |
RGB |
4:4:4 | 8bit | 1920×1080@60Hz | 23.98, 24, 25, 29.97,
30, 50, 59.94, 60, 100, 120 |
|
| HDMI 1.4 | YCbCr | 4:2:2 | 8bit | 1920×1080@60Hz | 23.98, 24, 25, 29.97,
30, 50, 59.94, 60, 100, 120 |
|
| YCbCr | 4:4:4 | 8bit | ||||
| RGB | 4:4:4 | 8bit |
Equipment Specifications:
| Chassis size (W×H×D) | ||
| Host | 482.6mm (19.0″) × 44.0mm (1.7″) × 292.0mm (11.5″) | |
| Package | 523.0mm (20.6″) × 95.0mm (3.7″) × 340.0mm (13.4″) | |
| Weight | ||
| Net weight |
3.13kg (6.90lbs) |
|
| Gross weight | 4.16kg (9.17lbs) | |
| Electrical Characteristics | ||
| Input power | AC100-240V, 50/60Hz | |
| Power rating | 10W | |
| Ripple and noise (mVp-p): | 150mV | |
| Working hours | ||
| Lifes | 100000 hours | |
| MTBF | 35000 hours, support 365 × 24-hour continuous operation | |
| Work condition | ||
| Temperature | -20℃~80℃ (-4°F~149°F) | |
| Humidity | 0%RH~95%RH, no condensation | |
| Storage condition | ||
| Temperature | -30℃~85℃ (-22°F~176°F） | |
| Humidity | 0%RH~95%RH, no condensation | |
