Description

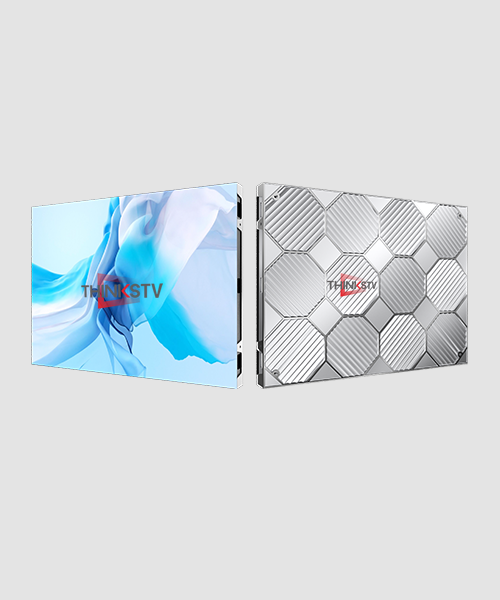

| LED indoor rental display | K1.86 |
| Pixel pitch | 1.86 mm |
| LED Package | SMD 1515 |
| Pixel composition | 1R1G1B |
| LED chip | Nationstar |
| Pixel density | 288906 dots/m2 |
| Lamp life | 100.000 h |
| Module dimension(W × H) | 320mm×160mm |
| Module resolution(W × H) | 172*86 Pixel |
| Cabinet dimension(W × H) | 640mm×480mm x 48mm |
| Cabinet resolution(W × H) | 344*258 Pixel |
| Blind spot | £ 0,1%0 |
| Cabinet weigh | 7.2Kg |
| Viewing angle | 140°/140° |
| Best viewing distance | 2 – 100m |
| Maintenance method | Front access |
| Brightness | 800cd~1000cd/m² |
| Refresh rate | 3840Hz |
| Operate temperature
Humidity |
-100C ~+70℃
10% ¸ 90% |
| Driving method | 1/43 scan |
| Max / Avg power consumption | 500w/m2. 165-260w/m2 |
